Description

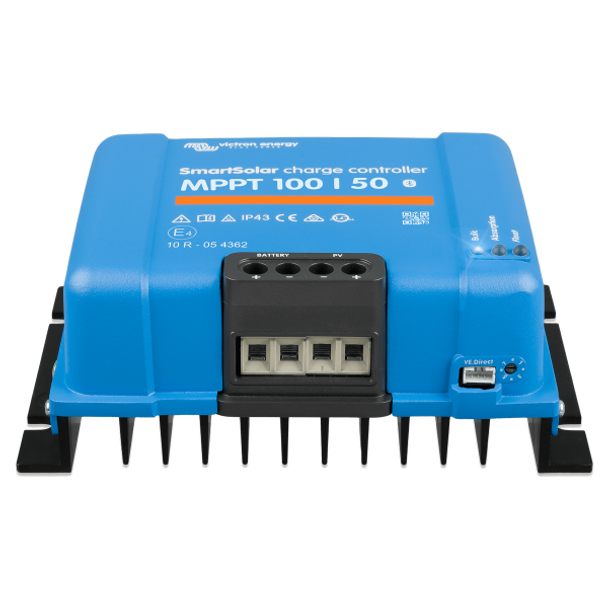

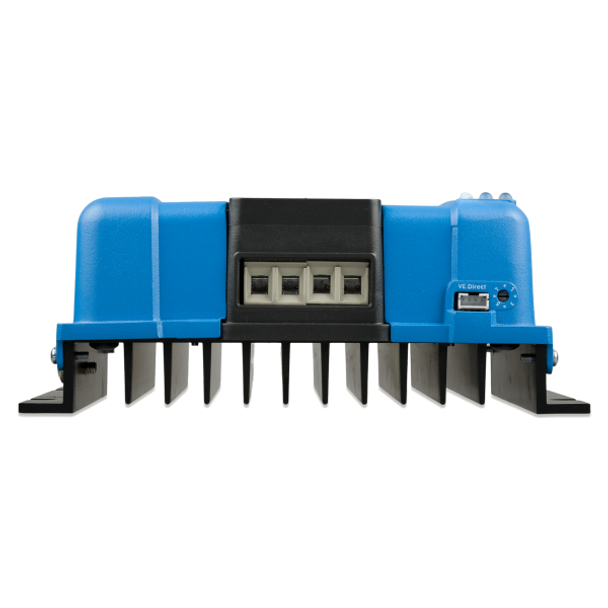

Victron Energy SCC110050210 SmartSolar MPPT 100/50 12/24V 50A Charge Controller
Overview
The Victron SmartSolar MPPT 100/50 (SCC110050210) is a professional-grade, high-capacity solar charge controller built to maximize energy harvest in 12V and 24V battery systems. Featuring ultra-fast Maximum Power Point Tracking (MPPT), it delivers up to 50A of charging power from PV arrays up to 1400W. With built-in Bluetooth, VE.Direct communication, and a rugged enclosure, it offers unbeatable value for off-grid, mobile, and critical-use systems.
Ideal for larger RVs, marine vessels, cabins, and commercial or industrial off-grid applications, this controller ensures your solar investment pays off in real-world conditions—especially in mixed or shaded environments.
Key Features
- 50A MPPT Charging: High-current charge capability for large solar arrays on 12V or 24V systems.
- 100V PV Input Limit: Wide voltage range supports flexible panel configurations with longer wire runs.
- Bluetooth Smart Built-In: Monitor and configure the controller wirelessly with VictronConnect.
- Advanced MPPT Algorithm: Accurately tracks the true power point—even under partial shading.
- Fully Programmable Charging: Use preset charge profiles for AGM, GEL, lithium, or flooded batteries—or create your own.
- VE.Direct Port: Connect to a GX device or Color Control Panel for extended monitoring via the VRM Portal.
- Built-In Protections: Reverse polarity, over-temperature, output short circuit, and battery over-voltage protected.
Applications
- Large off-grid solar installations
- Battery charging for marine or RV power systems
- Commercial and industrial solar backup systems
- Remote monitoring stations with high consumption
- High-demand 12V or 24V battery banks
Industries & Use Cases
- Renewable energy and energy storage
- Mobile living and marine navigation systems
- Off-grid commercial and agricultural operations
- Government and military mobile power units
- Industrial battery bank management
Technical Specifications
| Parameter | Value |
|---|---|
| Battery Voltage | 12V / 24V auto-detection |
| Rated Charge Current | 50A |
| Nominal PV Power | 700W @ 12V / 1400W @ 24V |
| Max PV Open Circuit Voltage | 100V |
| Max PV Short Circuit Current | 60A |
| Maximum Efficiency | 98% |
| Self-Consumption | 20-30mA (depending on voltage) |
| Absorption Voltage | 14.4V / 28.8V (default, adjustable) |
| Float Voltage | 13.8V / 27.6V (default, adjustable) |
| Charge Algorithm | Multi-stage adaptive |
| Temperature Compensation | -16mV/°C (12V), -32mV/°C (24V) |
| Operating Temp. Range | -22°F to +140°F (-30°C to +60°C) |
| Humidity | 95% max, non-condensing |
| Dimensions (HxWxD) | 5.1 x 7.3 x 2.8 in (130 x 186 x 70 mm) |
| Weight | 2.87 lbs (1.3 kg) |
| Protection Rating | IP43 (electronics) / IP22 (connections) |
| Certifications | EN/IEC 62109-1, UL 1741, CSA C22.2 |
Note: The controller automatically limits input power if more than the rated PV capacity is connected. Operates safely with higher PV wattage so long as voltage/current limits are respected.
Need More Technical Detail?
Need firmware info or full advanced feature specs? Download the official Victron datasheet here.
