Ameresco Solar BSP-140-12 140 Watt, 12V C1D2 Solar Panel
- Shipping:
- Calculated at Checkout
Product Images: Images are provided for illustrative purposes only and may not reflect the exact appearance, components, packaging, labeling, or configuration of the product received. Please refer to the product description and specifications for complete product details.
Description

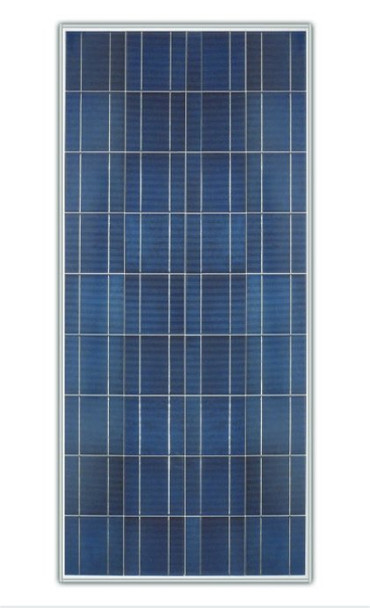

Ameresco Solar BSP140-12 140 Watt, 12 Volt Industrial-Grade Solar Panel
Overview
The Ameresco Solar BSP140-12 is a robust 140-watt, 12-volt solar panel built for industrial, remote, and Class I Division 2 applications. Engineered for reliability, it combines high-performance multicrystalline cells with a durable anodized aluminum frame and impact-resistant glass to deliver consistent power in harsh outdoor environments. Ideal for off-grid and stand-alone systems, this panel supports long-term energy production in remote monitoring, oil and gas, telecommunications, and transportation sectors.
Key Features
- High-efficiency multicrystalline silicon cells
- 140 watts of nominal power for 12-volt systems
- Heavy-duty anodized aluminum frame for easy mounting
- Impact-resistant glass ensures long-term durability
- Designed for continuous performance in harsh environments
- Certified for use in Class I, Division 2 Hazardous Locations
- 90% minimum power output guarantee for 10 years
Applications
- Oil and gas monitoring systems
- Remote communications and SCADA systems
- Pipeline and cathodic protection
- Traffic and safety lighting systems
- Off-grid control and telemetry units
Industries & Use Cases
- Oil & Gas
- Telecommunications
- Transportation and safety infrastructure
- Environmental monitoring
- Industrial automation and remote power systems
Technical Specifications
| Electrical Specifications (STC) | |
|---|---|
| Maximum Power (Pmax) | 140 W |
| Voltage at Pmax (Vmp) | 19.4 V |
| Current at Pmax (Imp) | 7.21 A |
| Open Circuit Voltage (Voc) | 23.1 V |
| Short Circuit Current (Isc) | 7.77 A |
| Nominal Voltage | 12 V DC |
| Mechanical Specifications | |
|---|---|
| Dimensions | 48.15 × 26.06 × 1.38 in (1223 × 662 × 35 mm) |
| Weight | Approx. 25.0 lb (11.3 kg) |
| Frame | Anodized aluminum |
| Front Glass | Impact-resistant tempered glass |
| Mounting | Compatible with Ameresco pole mount brackets |
| Certifications | UL1703, ULC1703, Class I Div 2 |
B2B Add-On Note
Download the Ameresco Solar BSP140-12 datasheet for I-V curves, installation details, and Class I Div 2 compliance documentation.
Warranty Information
