Ameresco Solar BSP-1-12 1 Watt, 12V C1D2 Solar Panel
- Shipping:
- Calculated at Checkout
Product Images: Images are provided for illustrative purposes only and may not reflect the exact appearance, components, packaging, labeling, or configuration of the product received. Please refer to the product description and specifications for complete product details.
Description

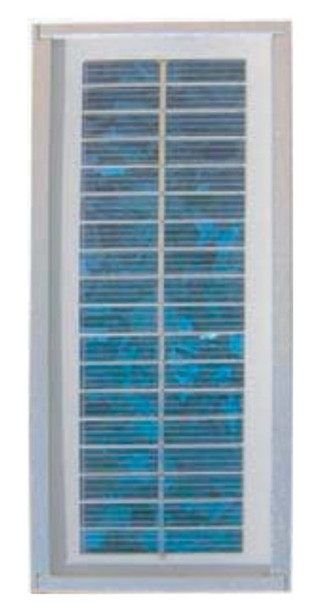

Ameresco Solar BSP-1-12 1 Watt, 12 Volt Industrial-Grade Solar Panel
Overview
The Ameresco Solar BSP-1-12 is a compact 1-watt, 12-volt solar module designed for low-power industrial and remote applications. Built with high-performance multicrystalline cells, an impact-resistant glass surface, and a durable anodized aluminum frame, this rugged panel is ideal for harsh environments. Despite its small size, it delivers reliable trickle-charge power for sensors, transmitters, and remote monitoring equipment, even in Class I Division 2 hazardous locations.
Key Features
- High-efficiency multicrystalline silicon cells
- Compact 1 W output optimized for 12 V systems
- Impact-resistant glass for long-term outdoor exposure
- Durable anodized aluminum frame for easy mounting
- 15 ft (4.6 m) AWG 18 output cable for flexible installation
- Certified for Class I, Division 2 Hazardous Locations
- 5-year limited warranty
Applications
- Remote instrumentation and data loggers
- Oil & gas monitoring and pipeline sensors
- Battery maintenance and trickle charging
- SCADA and telemetry systems
- Wildlife and environmental monitoring
Industries & Use Cases
- Oil & Gas
- Telecommunications & Remote Communications
- Environmental Science & Field Data Acquisition
- Industrial Automation & Instrumentation
- Transportation & Infrastructure Signaling
Technical Specifications
| Electrical Characteristics (STC) | |
|---|---|
| Maximum Power (Pmax) | 1 W |
| Voltage at Pmax (Vmp) | 16.7 V |
| Current at Pmax (Imp) | 0.075 A |
| Open Circuit Voltage (Voc) | 21.0 V |
| Short Circuit Current (Isc) | 0.09 A |
| Nominal Voltage | 12 V DC |
| Mechanical Characteristics | |
|---|---|
| Dimensions | 9.38 × 3.88 × 0.63 in (238 × 99 × 16 mm) |
| Weight | Lightweight (approx. < 1 lb / 0.45 kg) |
| Output Cable | AWG 18 (0.75 mm²) 2-core / 15 ft (457 cm) |
| Frame | Anodized aluminum |
| Front Glass | Impact-resistant tempered glass |
| Certifications | Class I Div 2 / UL 1703 / C1D2 rated |
B2B Add-On Note
Download the Ameresco BSP-1-12 datasheet for IV-curves, mechanical drawings, and mounting options.
Warranty Information
Related Products
Related Products

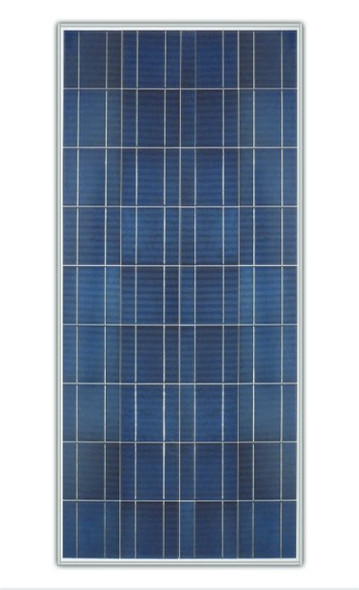

Ameresco Solar BSP-120-12 120 Watt, 12V C1D2 Solar Panel
