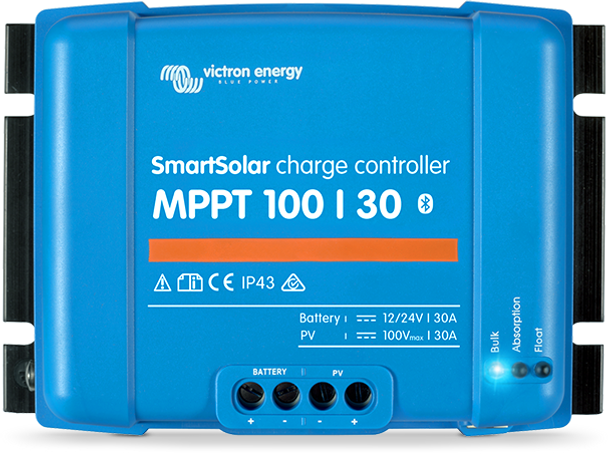

Victron Energy SCC110030210 SmartSolar MPPT 100/30 12/24V 30A Charge Controller
Overview
The Victron SmartSolar MPPT 100/30 (SCC110030210) is a high-efficiency, feature-rich solar charge controller designed to optimize energy harvest from your solar panels. With support for both 12V and 24V battery systems and a powerful 30A charge current, this controller leverages advanced MPPT (Maximum Power Point Tracking) technology to extract the most energy even under partial shade or cloudy skies.
Integrated Bluetooth connectivity enables remote setup and monitoring via the VictronConnect app. The controller is ideal for RVs, boats, cabins, and off-grid power systems where dependable performance, flexibility, and data access are essential.
Key Features
- 30A MPPT Charging: Extracts maximum power from solar arrays, improving efficiency over PWM controllers.
- 12V & 24V System Support: Auto-detects and configures to your battery bank voltage.
- Bluetooth Smart Built-In: Monitor and configure the controller wirelessly with VictronConnect.
- Ultra-Fast MPPT Tracking: Rapid detection of the optimum power point improves energy yield in dynamic conditions.
- Flexible Battery Charging: Preset algorithms for lead-acid, AGM, GEL, and lithium batteries with custom settings available.
- Electronic Protection: Safeguards include over-temperature, overvoltage, reverse polarity, and short-circuit protection.
- Optional Remote Monitoring: Add a GX device for access to Victron's VRM Portal (internet-based monitoring platform).
Applications
- Medium off-grid solar systems
- RV, van, and camper solar installations
- Boats and marine battery systems
- Cabins and remote property setups
- Critical battery charging for communications or instrumentation
Industries & Use Cases
- Renewable energy storage systems
- Off-grid residential and mobile applications
- Marine and nautical power systems
- Telecom and remote surveillance systems
- Industrial control power backup
Technical Specifications
| Parameter | Value |
|---|---|
| Battery Voltage | 12V / 24V auto-detection |
| Rated Charge Current | 30A |
| Max PV Open Circuit Voltage | 100V |
| Max PV Input Power | 440W @ 12V, 880W @ 24V |
| MPPT Efficiency | ~99% |
| Bluetooth | Built-in (VictronConnect compatible) |
| Operating Temp. Range | -30°C to +60°C (-22°F to +140°F) |
| Enclosure Protection | IP43 (electronics), IP22 (connections) |
| Dimensions (HxWxD) | 3.2 x 5.1 x 7.3 in (100 x 113 x 235 mm) |
| Weight | 2.87 lbs (1.3 kg) |
| Compliance | EN/IEC 62109, CE, RoHS |
Note: For optimal performance, use 36-cell panels for 12V systems and 72-cell panels for 24V systems, wired within the 100V open circuit limit.
Need More Technical Detail?
Need deeper diagnostics, firmware info, or system expansion guidance? Download the official Victron spec sheet here.
