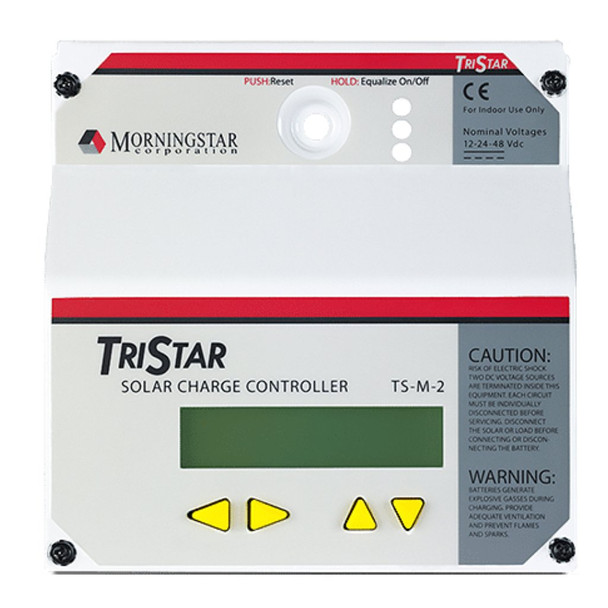

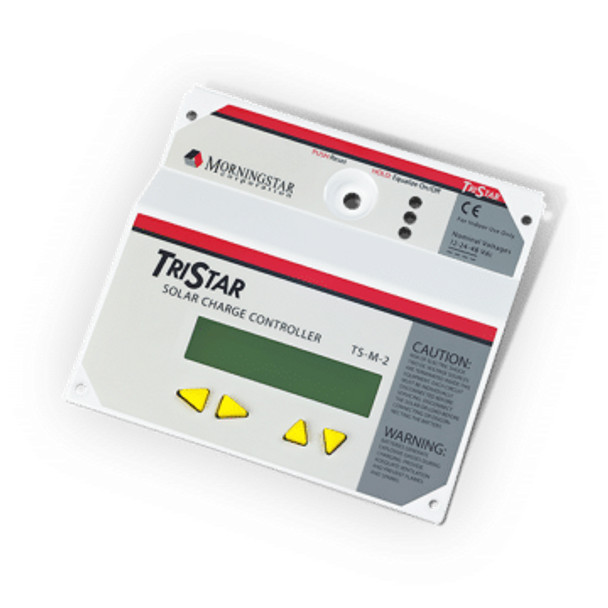

Morningstar TriStar Digital Meter-2 (TS-M-2)
Overview
The TriStar Digital Meter-2 adds on-controller, backlit LCD monitoring to Morningstar’s TriStar PWM and TriStar MPPT systems. With a 2×16 character display and four-button navigation, it surfaces live charge/load/battery data, cumulative Ah/kWh totals, and active/latched alarms—speeding commissioning and field diagnostics. A single RJ-11 MeterBus cable carries both power and data, and with Morningstar’s MeterHub you can view aggregate values across multiple networked TriStar controllers.
Key Features
- Real-time readouts for controller status, battery/array metrics, and logged totals
- Backlit LCD, four directional keys, multilingual UI (EN/FR/DE/PT/ES)
- MeterBus (RJ-11) single-cable data + power; auto device discovery
- Works in networks of multiple TriStar controllers via MeterHub
- Companions: TS-RM-2 remote/flush-mount version; TS-M-2-600V for TriStar MPPT-600V
Applications
- On-panel visibility for off-grid solar, telecom, and industrial control systems
- Field service and troubleshooting across multi-controller arrays
- Centralized metering of distributed TriStar installations
Technical Specifications
| Model | TS-M-2 (on-controller meter) |
|---|---|
| Compatibility | TriStar PWM and TriStar MPPT; use TS-M-2-600V for TriStar MPPT-600V |
| Display | 2 × 16 character backlit LCD; English, French, German, Portuguese, Spanish |
| User Interface | Four pushbuttons; menu map with bar-graph metering, alarms & faults |
| Networking | MeterBus networking with Morningstar MeterHub for multi-device aggregation |
| Connection | RJ-11 (6-conductor) MeterBus; data and power over single cable |
| Included Cables | TS-M-2: ~0.13 m (5 in); TS-RM-2: ~30 m (98.4 ft) remote cable |
| Self-Consumption | < 0.5 W (≈ 42.5 mA with backlight on) |
| Environmental | Operating −40 °C to +60 °C; LCD −20 °C to +70 °C; Storage −55 °C to +85 °C; 5–95% RH, non-condensing |
| Mechanical | TS-M-2 weight ≈ 0.23 kg (0.5 lb); TS-RM-2 plate 116 × 116 mm (4.56 × 4.56 in) |
| Certifications | CE, RoHS, REACH; ETL Recognized; FCC Class B Part 15; ACMA-EMC; ISO-9001 manufacturing |
Design & Operation
Installs directly onto the TriStar chassis (or remotely via TS-RM-2). The meter’s low power draw preserves system efficiency while giving immediate access to live performance, cumulative energy, timers, and diagnostic history. Ideal for permanent installs or as a roving service tool reused across sites.
