Victron Energy SCC075015060R SmartSolar MPPT 75/15 15A 12/24/48V Charge Controller
Overview
The Victron SmartSolar MPPT 75/15 (SCC075015060R) is a highly efficient solar charge controller designed for 12V, 24V, and 48V systems. With ultra-fast Maximum Power Point Tracking (MPPT), Bluetooth connectivity, and intelligent battery management, it's ideal for small to mid-sized off-grid applications where performance and control matter.
It features automatic battery voltage detection, integrated load output, and compatibility with both lead-acid and lithium batteries. Whether you're powering a remote cabin, an RV, or a backup system, this controller ensures optimal energy harvesting in all conditions.
Key Features
- Multi-Voltage Support: Automatically detects and configures for 12V, 24V, or 48V battery systems.
- 15A MPPT Charging: Captures more energy from your solar panels, even during shade or partial sunlight.

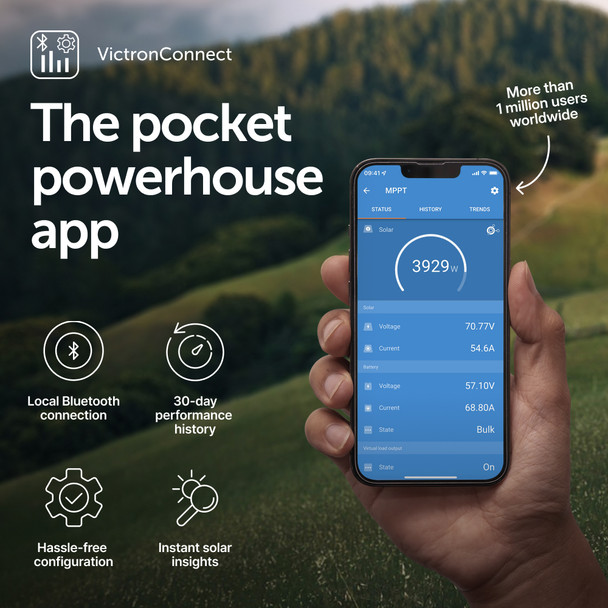

- Bluetooth Smart Built-In: Monitor and configure wirelessly using the VictronConnect app.
- Load Output with LVD: Protects battery life by disconnecting loads during low voltage conditions.
- Battery Life Algorithm: Enhances battery longevity by intelligently adjusting charge cycles.
- Adaptive Multi-Stage Charging: Ensures accurate charging for AGM, GEL, flooded, and lithium batteries.
- Fully Discharged Battery Recovery: Will initiate charging even if the battery is at zero volts.
Applications
- Off-grid cabins and mobile setups
- Solar battery maintenance systems
- Backup power for security or lighting
- RVs, campervans, and boats
- Telecom and remote monitoring systems
Industries & Use Cases
- Renewable energy and battery storage
- Marine, mobile, and RV power systems
- Field instrumentation and remote communications
- Residential solar DIY and mini-grid support
Technical Specifications
| Parameter | Value |
|---|---|
| Battery Voltage | 12V / 24V / 48V (auto select) |
| Rated Charge Current | 15A |
| Nominal PV Power | 220W @ 12V / 440W @ 24V |
| Max PV Open Circuit Voltage | 75V |
| Max PV Short Circuit Current | 15A |
| Peak Efficiency | 98% |
| Self-Consumption (Load On) | 12V: 19mA / 24V: 16mA |
| Self-Consumption (Load Off) | 12V: 10mA / 24V: 8mA |
| Absorption Voltage | 14.4V / 28.8V / 57.6V (adjustable) |
| Float Voltage | 13.8V / 27.6V / 55.2V (adjustable) |
| Temp Compensation | -16mV/°C (12V), -32mV/°C (24V) |
| Operating Temp Range | -22°F to +140°F (-30°C to +60°C) |
| Humidity | Up to 95% RH, non-condensing |
| Dimensions (HxWxD) | 3.9 × 4.4 × 2.0 in (100 × 113 × 50 mm) |
| Weight | 1.32 lbs (0.6 kg) |
| Protection Category | IP43 (electronics) / IP22 (connections) |
| Certifications | EN/IEC 62109-1, UL 1741, CSA C22.2 |
Note: Controller will safely limit power from oversized solar arrays as long as input voltage and short circuit current stay within spec.
Need More Technical Detail?
Looking for fuse sizing, remote temp sensors, or firmware settings? Download the official Victron spec sheet here.
