Overview

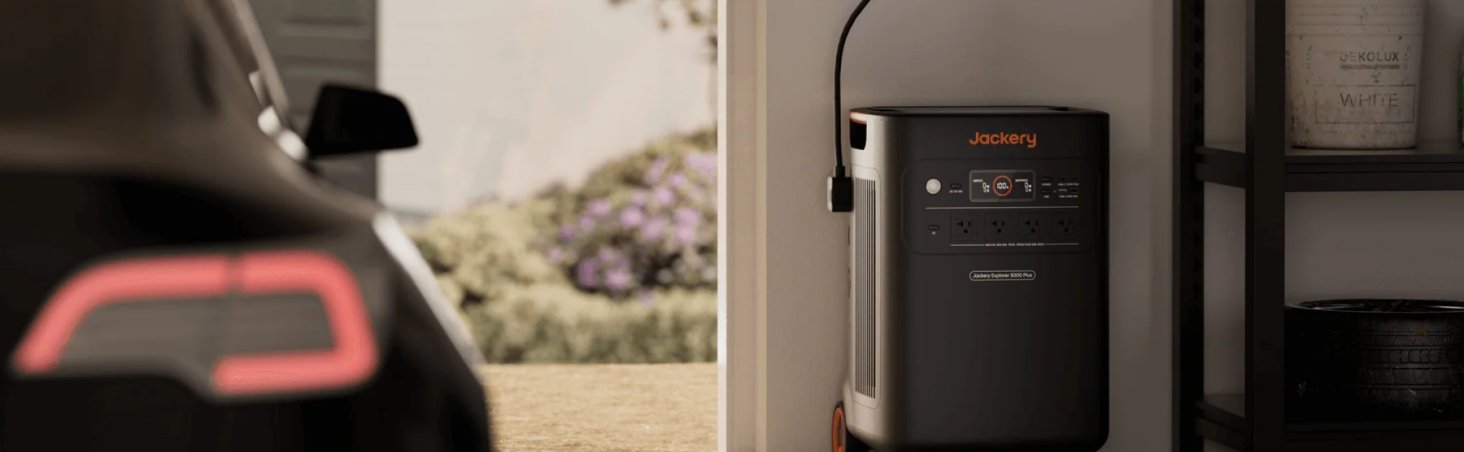

The Jackery Explorer 5000 Plus delivers unprecedented portable home backup performance with a massive 5040 Wh LiFePO₄ battery and 7200 W max AC output (14,400 W surge). Designed for whole-home or field applications, it supports dual-voltage (120 V / 240 V AC) operation, expandable capacity up to 25 kWh with optional Battery Pack 5000 Plus modules, and smart grid integration through the Jackery Smart Transfer Switch. The integrated Uninterruptible Power Supply (UPS) function provides both <20 ms backup and 0 ms online switching modes to maintain critical loads. Advanced Wi-Fi + Bluetooth connectivity via the Jackery App enables real-time monitoring, custom charge scheduling, and firmware updates for total energy control.

Key Features

  • 5040 Wh LiFePO₄ battery pack rated for 4000 cycles to 70 % capacity retention for long-term reliability.
  • 7200 W max output (14 400 W surge) with pure sine-wave inverter for stable appliance power at 120 V and 240 V AC.
  • Uninterruptible Power Supply (UPS) function with <20 ms backup or 0 ms online transfer via Jackery App or manual toggle.
  • Dual solar inputs (High-PV and Low-PV) accept up to 450 V high-voltage arrays for rapid off-grid charging.
  • Smart App integration enables Wi-Fi and Bluetooth control for monitoring, mode switching, and scheduled operation.
  • Expandable design supports up to five Battery Pack 5000 Plus modules to reach over 25 kWh of storage.
  • High-efficiency power factor (≥ 0.98) with non-isolated Type 1 inverter topology for commercial-grade stability.
  • Quiet Charging and Battery Saving modes extend service life and reduce acoustic footprint for indoor use.

Applications

  • Whole-home emergency backup power solution with Smart Transfer Switch compatibility
  • Off-grid cabins, remote construction, and field operations with high load demand
  • Recreational vehicles (RVs), trailers, and expeditions needing dual-voltage power
  • Renewable energy storage integration and microgrid support systems

Industries & Use Cases

  • Residential energy resilience and disaster preparedness
  • Commercial mobile work sites and emergency response fleets
  • Telecom and remote monitoring installations
  • Solar and energy storage professionals deploying hybrid backup solutions

Technical Specifications

Product Name Jackery Explorer 5000 Plus
Model Number JE-5000A
Battery Capacity 5040 Wh (45 Ah @ 112 V DC)
Battery Type LiFePO₄ (Lithium Iron Phosphate)
Cycle Life 4000 cycles to 70 % capacity
AC Output 120 V / 240 V ~ 60 Hz 7200 W (14 400 W surge)
AC Outlets 4 × NEMA 5-20 (120 V) | 1 × NEMA L14-30R | 1 × NEMA 14-50 (120 V / 240 V)
USB-C Outputs 2 × 100 W PD (5–20 V ⎓ 5 A max)
USB-A Outputs 2 × 18 W (QC 3.0)
Car Port Output 12 V ⎓ 10 A (120 W max)
DC Input (High-PV) 135–450 V ⎓ 15 A max
DC Input (Low-PV) 16–60 V ⎓ 10.5 A × 2 (21 A / 1200 W max combined)
AC Input (Charge Mode) 120 V ~ 60 Hz 15 A max (1800 W max)
UPS Transfer Time < 20 ms (Backup Mode) | 0 ms (Online Mode)
Power Factor ≥ 0.98 (Pure Sine Wave Inverter)
Connectivity Wi-Fi + Bluetooth (App Control and Scheduling)
Dimensions (W × D × H) 16.5 × 15.5 × 25 in (41.8 × 39.5 × 63.5 cm)
Weight 134.5 lb (61 kg)
Operating Temperature Discharge –15 °C to 45 °C (5 °F – 113 °F) | Charge 0 °C to 45 °C (32 °F – 113 °F)
Certifications FCC / UL / UN38.3 / RoHS Compliant
Warranty 5 Years Standard | Optional 2-Year Extended Coverage

B2B Add-On

Integrate the Jackery Explorer 5000 Plus into large-scale backup or commercial solar systems with dual-voltage operation and UPS support. Contact our B2B sales team for OEM integration, deployment planning, and fleet partnerships.
