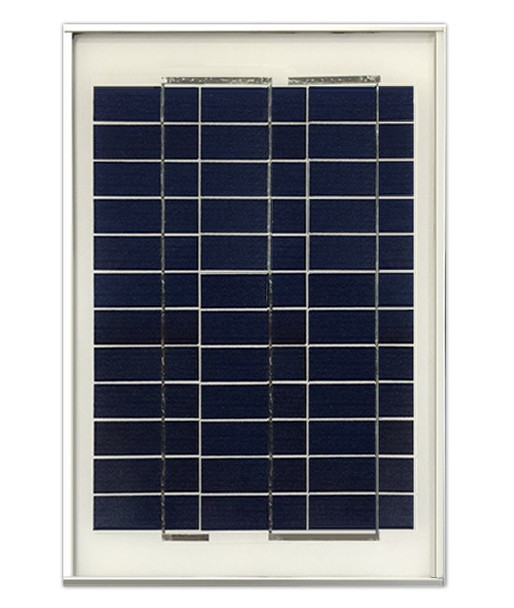

Ameresco Solar BSP-10-12 10 Watt, 12V C1D2 Solar Panel

(1 review) Write a Review
SKU:
BSP-10-12
Weight:
4.00 LBS
Shipping:
Calculated at Checkout
$57.00

Description

Ameresco Solar BSP140-12 140 Watt, 12 Volt Industrial-Grade Solar Panel

Overview

The Ameresco Solar BSP140-12 is a robust 140-watt, 12-volt solar panel built for industrial, remote, and Class I Division 2 applications. Engineered for reliability, it combines high-performance multicrystalline cells with a durable anodized aluminum frame and impact-resistant glass to deliver consistent power in harsh outdoor environments. Ideal for off-grid and stand-alone systems, this panel supports long-term energy production in remote monitoring, oil and gas, telecommunications, and transportation sectors.

Key Features

  • High-efficiency multicrystalline silicon cells
  • 140 watts of nominal power for 12-volt systems
  • Heavy-duty anodized aluminum frame for easy mounting
  • Impact-resistant glass ensures long-term durability
  • Designed for continuous performance in harsh environments
  • Certified for use in Class I, Division 2 Hazardous Locations
  • 90% minimum power output guarantee for 10 years

Applications

  • Oil and gas monitoring systems
  • Remote communications and SCADA systems
  • Pipeline and cathodic protection
  • Traffic and safety lighting systems
  • Off-grid control and telemetry units

Industries & Use Cases

  • Oil & Gas
  • Telecommunications
  • Transportation and safety infrastructure
  • Environmental monitoring
  • Industrial automation and remote power systems

Technical Specifications

Electrical Specifications (STC)
Maximum Power (Pmax) 140 W
Voltage at Pmax (Vmp) 19.4 V
Current at Pmax (Imp) 7.21 A
Open Circuit Voltage (Voc) 23.1 V
Short Circuit Current (Isc) 7.77 A
Nominal Voltage 12 V DC
Mechanical Specifications
Dimensions 48.15 × 26.06 × 1.38 in (1223 × 662 × 35 mm)
Weight Approx. 25.0 lb (11.3 kg)
Frame Anodized aluminum
Front Glass Impact-resistant tempered glass
Mounting Compatible with Ameresco pole mount brackets
Certifications UL1703, ULC1703, Class I Div 2

B2B Add-On Note

Download the Ameresco Solar BSP140-12 datasheet for I-V curves, installation details, and Class I Div 2 compliance documentation.

View AllClose

Warranty Information

2-year materials & workmanship; 12-year 90% power; optional 25-year power
View AllClose

Specs & Manuals

Ameresco Solar BSP-10-12 10W 12V Solar Panel:
View AllClose

1 Review

  • 5

    POWER UP BSP SERIES INDUSTRIAL-GRADE 10 WATT, 12V MULTICRYSTALLINE SOLAR PANEL

    Posted by Terry on 17th Oct 2023

    I bought this solar panel to replace my original panel on my solar water heat collector. It is used to power the solar water circulation pump from the roof panel to the water heater/tank. As of this time it is working perfect for it's intended use. I would but it again and would highly recommend it to anyone needing an electric source for a circulation pump.
