Description

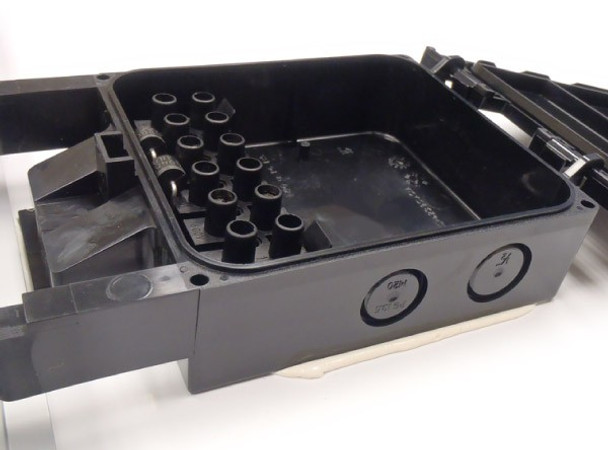

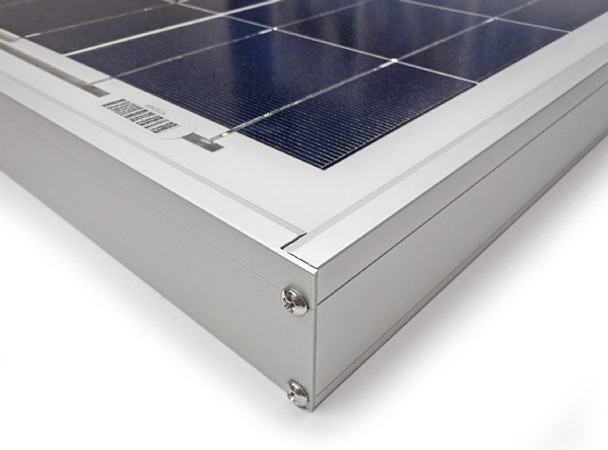

Certified for use in C1D2 conditions, the AMS060J 60 Watt 12 Volt Solar Panel has a silver anodized aluminum frame, white polyester back cover, and an 18-2 AWG polarized cable in the fully sealed junction box.
| 60W PHOTOVOLTAIC MODULE – 20J | – 1 STC 1000W/m2 | – 2 NOCT 800W/m2 |
| Maximum power – Pmax | 60W | 43W |
| Voltage at Pmax – Vmpp | 17.9V | 15.9V |
| Current at Pmax – Impp | 3.35A | 2.7A |
| Short circuit current – Isc | 3.48A | 2.8A |
| Open circuit voltage – Voc | 22.1V | 20.1V |
| Module efficiency | 11.10% | |
| Tolerance – Pmax | ±10% | |
| Nominall voltage | 12V | |
| Efficiency reduction at 200W/m2 | <5% reduction – efficiency 10.0% | |
| Limiting reverse current | 3.20A | |
| Temperature coefficient of Isc | 0.105%/°C | |
| Temperature coefficient of Voc | -0.360%/°C | |
| Temperature coefficient of – Pmax | -0.45%/°C | |
| – 3 NOCT | 47±2°C | |
| Maximum series fuse rating | 8A | |
| Application class – according to IEC 61730:2007 | Class C | |
| Maximum system voltage | 60V – U.S. NEC / 1000V – IEC 61730:2007 | |
1. Values at Standard Test Conditions – STC: 1000W/m2 irradiance, AM1.5 solar spectrum and 25ºC module temperature
2. Values at 800W/m2 irradiance, Nominall Operation Cell Temperature – NOCT and AM1.5 solar spectrum
3. Nominall Operation Cell Temperature: Module operation temperature at 800W/m2 irradiance, 20ºC air temperature, 1m/s wind speed
Warranty Information
2-year materials & workmanship; 12-year 90% power; optional 25-year power
